Dahua Ethernet and ePoE Over Coax Passive Convertor Cable, White: PAIR Converters Dahua

Dahua Ethernet and ePoE Over Coax Passive Convertor Cable, White: PAIR

Name: Dahua Ethernet and ePoE Over Coax Passive Convertor Cable, White: PAIR
Brand: Dahua
SKU: DAH-LR1002
Price: 6500.0 JPY
Availability: InStock

¥6,500 ¥6,900

Discount: ¥400 (6%)

Out of stock

Add to favourites Delete favourites

Shipping Policy

Shipping Policy for AV Pros

Effective Date: March 19, 2025

At AV Pros, we are committed to providing you with a seamless shopping experience, including fast and efficient shipping. This Shipping Policy outlines the details regarding our shipping options, delivery times, and related information.

1. Shipping Options

We are pleased to offer the following shipping options for all orders placed through our website:

1.1. ⁠Free Tracked Shipping:
We provide free 2-3 day tracked shipping on all in-stock items shipped across the UK. Once your order has been processed and shipped, you will receive a tracking number via email so you can monitor your shipment's progress.

1.2. Express Next Day Shipping:
For faster delivery, we offer an express next day shipping option for a fee of £35 per order. Orders must be placed before 12 PM to qualify for next day delivery. If your order is placed after this time, it will be dispatched the following business day for delivery the next day.

2. Processing Times

•⁠ ⁠Orders are typically processed within 1-2 business days after payment confirmation.
•⁠ ⁠Special orders may take up to 7 business days to process.⁠ ⁠

•⁠ Please note that processing times may vary during peak periods or holidays, and we appreciate your understanding.

•⁠ ⁠Delivery times may be extended due to courier delays or other circumstances beyond our reasonable control.

3. Delivery Times

•⁠ ⁠Standard Free Shipping: Delivery within 2-3 business days.
•⁠ ⁠Express Shipping: Next business day delivery for orders placed by 12 PM. Orders placed on weekends or holidays will be processed the next business day.

4. Shipping Restrictions

•⁠ ⁠All shipping services are available only within the mainland UK.
•⁠ ⁠Unfortunately, we currently do not offer international shipping or delivery to remote locations or islands.

5. Shipping Costs

•⁠ ⁠Standard Free Tracked Shipping: £0 on all in-stock items across the UK.
•⁠ ⁠Express Next Day Shipping: £35 per order, applicable only when chosen at checkout.

6. Tracking Your Order

Once your order has shipped, you will receive an email with shipping details, including a tracking number. You can use this tracking number to monitor your order's journey until it reaches your door.

7. Lost or Damaged Shipments

In the event that your order is marked as delivered but not received, or if it has arrived damaged, please contact our customer service team within 48 hours of delivery at info@avpros.co.uk or call us at 020 3355 5067. We will work with you to resolve the issue promptly.

8. Contact Us

If you have any questions or concerns regarding our shipping policy or your order, please do not hesitate to reach out to our customer service team at info@avpros.co.uk or call us at 020 3355 5067.

We appreciate your business and strive to provide you with the best shipping experience possible. Thank you for choosing AV Pros!

Estimated Delivery: Jun 05 - Jun 09

Standard Delivery: 2-3 Days.
Express Delivery: Next day when purchased before 12pm.

Pay Now or Later — Your Choice.

Description
User guides

Description:

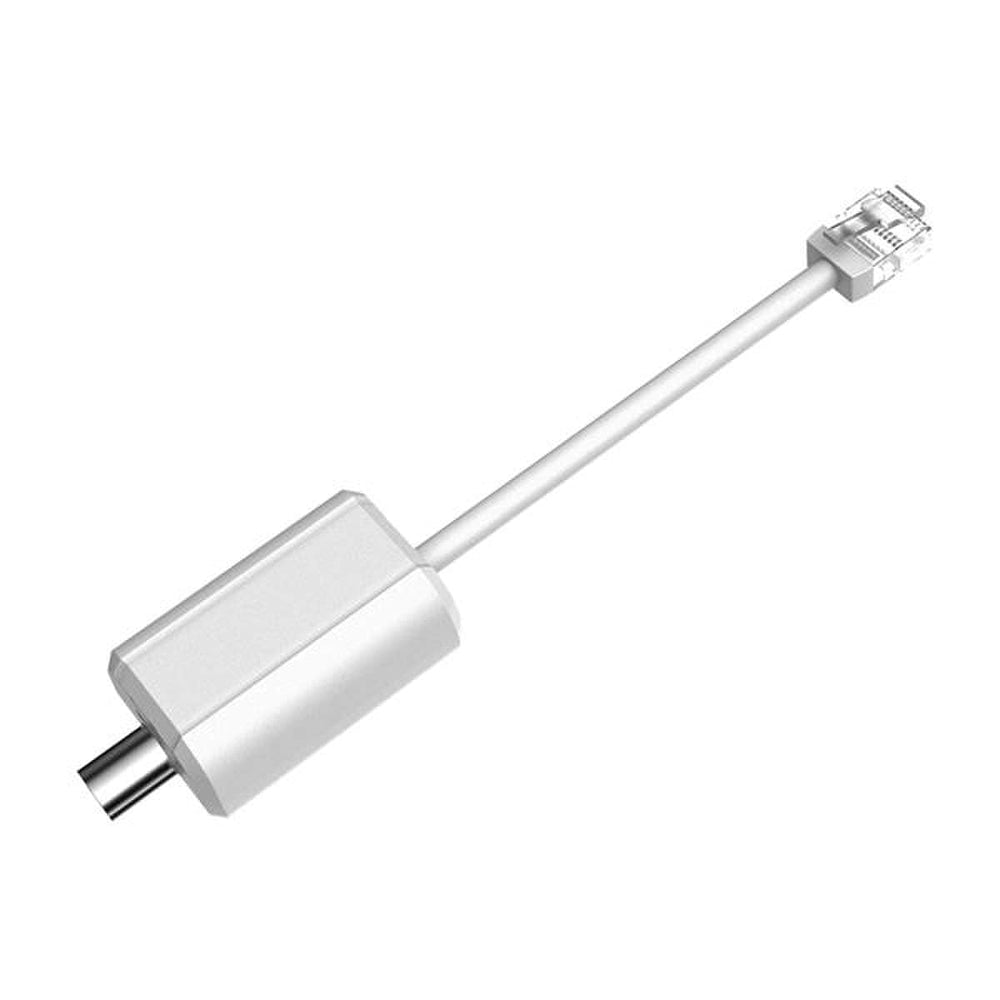

Dahua's LR1002 ePoE passive converter pair is designed to work as a converter from RJ45 to BNC, offering long range power supply transmission via coaxial cable. The LR1002 is equipped with two transmission modes which are 100Mbps and 10Mbps.

Dahua's innovative ePoE technology offers a plug and play solution to transmit power and data over long distances via Ethernet or coaxial cables, reducing installation time and saving money. ePoE technology is a viable, cost effective solution for extending transmission distances and for converting existing, coax based analogue systems into IP systems. The ePoE technology from Dahua is an advanced 2D-PAM3 coding modulation offering full duplex transmission over 800 metres at the speed of 10Mbps or 300 metres at the speed of 100Mbps via Cat 5 or coaxial cable media. It features PoE and PoC power supplies, which greatly simplify construction and wiring. Dahua's ePoE technology offers a new way to achieve long distance transmission between IP camera and network switch, allowing more flexible surveillance system design, improved reliability and saved construction and wiring cost.

For video security and surveillance installers, ePoE technology saves time and money by reducing overall cabling requirements, allowing for existing coax cable to be used and minimising the number of peripheral devices needed.

For new installations, ePoE offers the ability to design long distance applications without the need for additional repeaters. Enhanced PoE encompasses pure IP systems where a single CAT 5 cable can carry signals up to 800 m (2624 ft) and IP/Analogue hybrid systems where the technology leverages existing analogue infrastructure to transmit power and data up to 1000 m (3281 ft) over RG59 coaxial cable. Enhanced PoE is compatible with three connection modes operating over the same network simultaneously i.e. traditional IP networks, long distance ePoE networks and coaxial networks.

ePoE technology seamlessly integrates the latest high definition IP cameras with a coaxial infrastructure using the Ethernet over Coaxial (EoC) protocol to convert between analogue and IP power and data transmissions. It also allows an upgrade of a coax wired systems to IP without re wiring.

This converter cable conforms to IEEE802.3, IEEE802.3u standards.

Features:

Supports IEEE802.3, IEEE802.3u standards
1 x RJ45 10/100Mbps port and 1x BNC·
Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
Supports MDI/MDIX self adaption
Supports long range power supply transmission via coaxial cable

Specifications:

Function Port	110/100 Mbps Base-TX 1B N C
Power Consumption	<1W
Transmission Bandwidth	RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
PoE Protocol	Based on the power input from the ePoE switch
Network Standard	IEEE802.3, IEEE802.3u
Lightning Protection	Common Mode 6KV Differential Mode 2KV
Operating Temperature	-40°C / -40°F to 60°C / 140°F
Operating Humidity	0% to 95%
Dimensions	Height: 21mm / 0.83" Width: 56mm / 2.21" Depth: 27mm / 1.06"
Weight	28.3g / 0.06lb
Quantity	Supplied as a pair

Download User Guides:

Data Sheet

Brochure

User Manual

Residential Case Study
