Description:

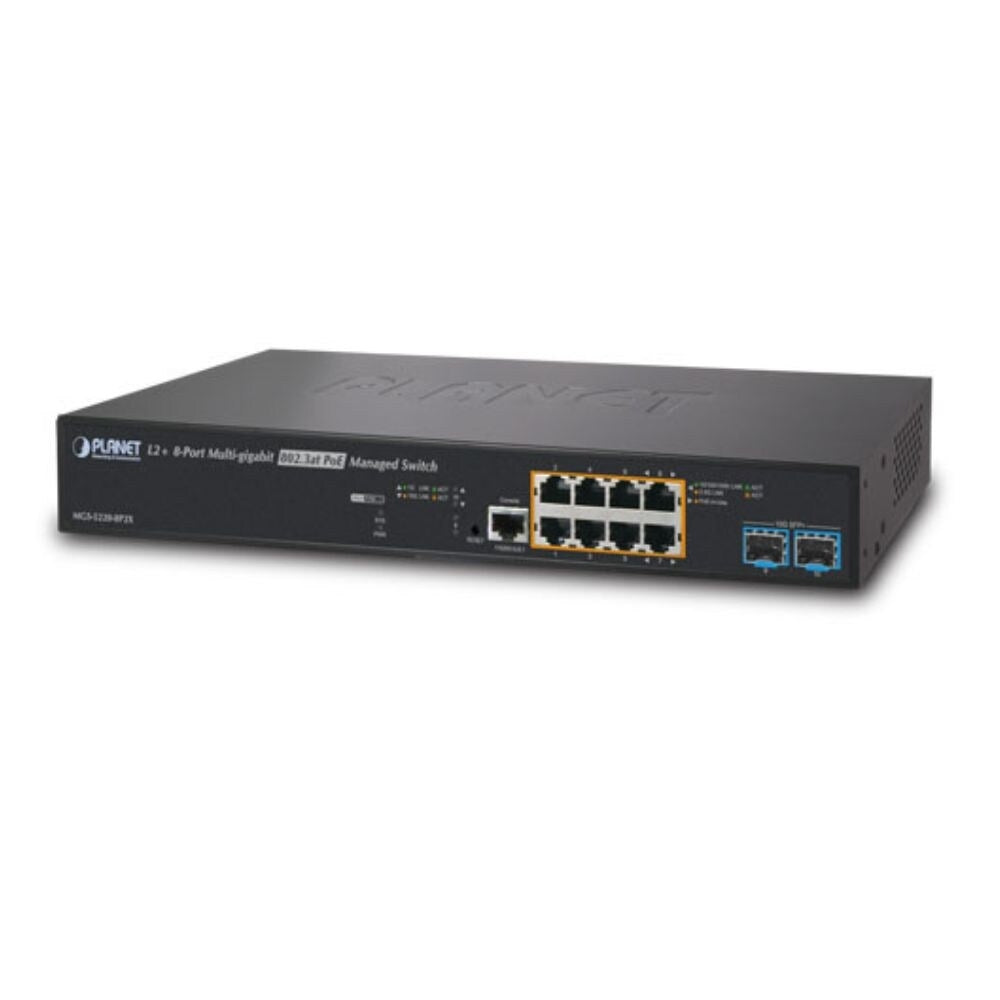

The MGS-5220-8P2X is Planet Technology's first Layer 2+ Managed multi gigabit Switch providing 2.5Gbps data rate and PoE over UTP cables. It is designed for the demand of high bandwidth required network equipment, such as 802.11ac Wave 2 wireless acess points.

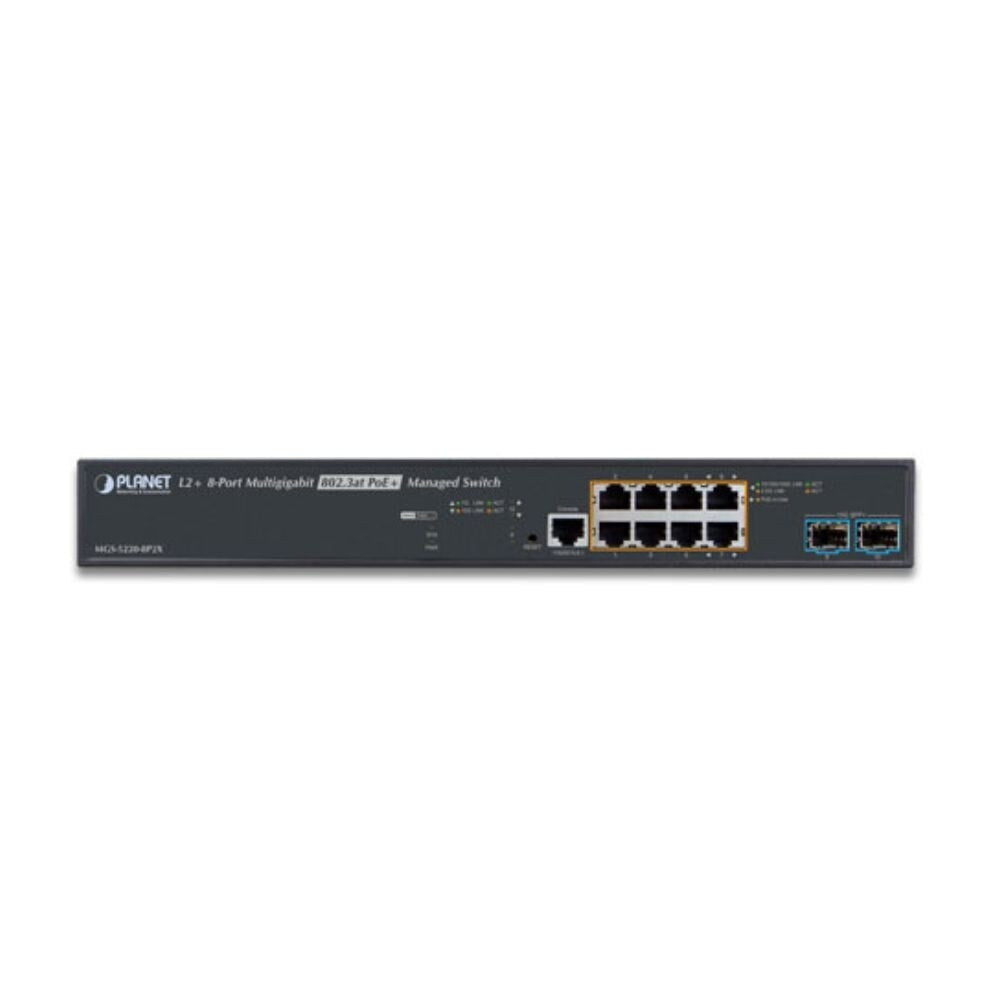

This managed switch offers a perfect hardware configuration with 8 100, 1000 and 2500BASE-T ports featuring 30W 802.3at PoE+ and 2 extra 1/10 Gigabit BASE-X SFP+ fibre slots.
The MGS-5220-8P2X breaks the bandwidth limitation of connecting wireless networks with wired networks and delivers hardware based Layer 3 static routing capability, Layer 2 and Layer 4 switching engine and Planet Technology's intelligent PoE functions.
It provides a highly secure and environment friendly network management tool and accelerates the deployment of wireless network infrastrucure.
Features:
Specifications:
| Ports | Copper: 8 x 100, 1000 and 2500 BASE-T RJ45 Auto MDI or MDI-X PoE Injector: 8 ports with 802.3at/af PoE injector function with port 1 to port 8 SFP or Mini GBIC Slots: 2 x 1/10G BASE-X SFP interfaces with port 9 to port 10 |
| Console | 1 x RJ45 serial port (115200 , 8, N, 1) |
| Switch | Switch Architecture: Store and Forward Switch Fabric: 80Gbps |
| Throughput | 59.52Mpps @ 64 bytes |
| Flow Control | IEEE 802.3 x pause frame for full duplex Back pressure for half duplex |
| PoE | Standard: IEEE 802.3at PoE Plus, PSE Power Supply Type: End span Power Output: Per port 54V DC, max 30.8W Power Budget: 240W max @ 25°C 200W max @ 50°C |
| PoE Ability | PD @ 7 W: 8 units PD @ 15.4W: 8 units PD @ 30.8Ws: 8 units |
| LED | System: Fan alert (green), SYS (green), PWR (green) 100/1000/2500 BASE-T RJ45 Interfaces Port 1 to Port ): 100/1000Mbps LNK/ACT (green) 2500 Mbps (orange) PoE in use (orange) 1/10G Mbps SFP Interfaces Port 9 to Port 10 : 1G LNK/ACT (green) 10G Mbps (orange) |

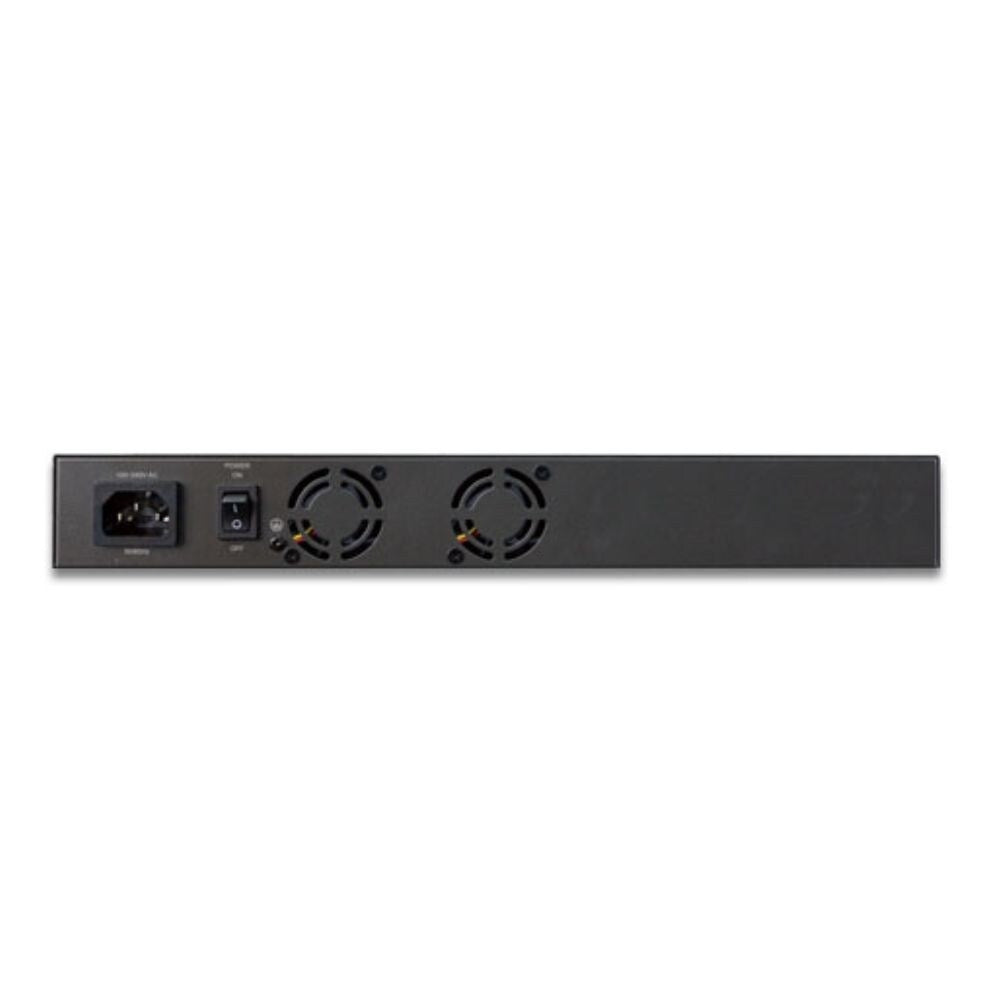

| Power | Requirement: 100 to 240V AC 50/60Hz Consumption Full Loading: 320 W / 1091.9 BTU max |
| ESD Protection | 6KV DC |
| Rack Size | 1RU height |
| Dimensions | Height: 43.5mm / 1.71" Width: 330mm / 12.99" Depth: 200mm / 7.87" |
| Weight | 2kg / 4.41lb |
Download User Guides:
Data Sheet
Users Manual
Quick Start Guide
