Description:

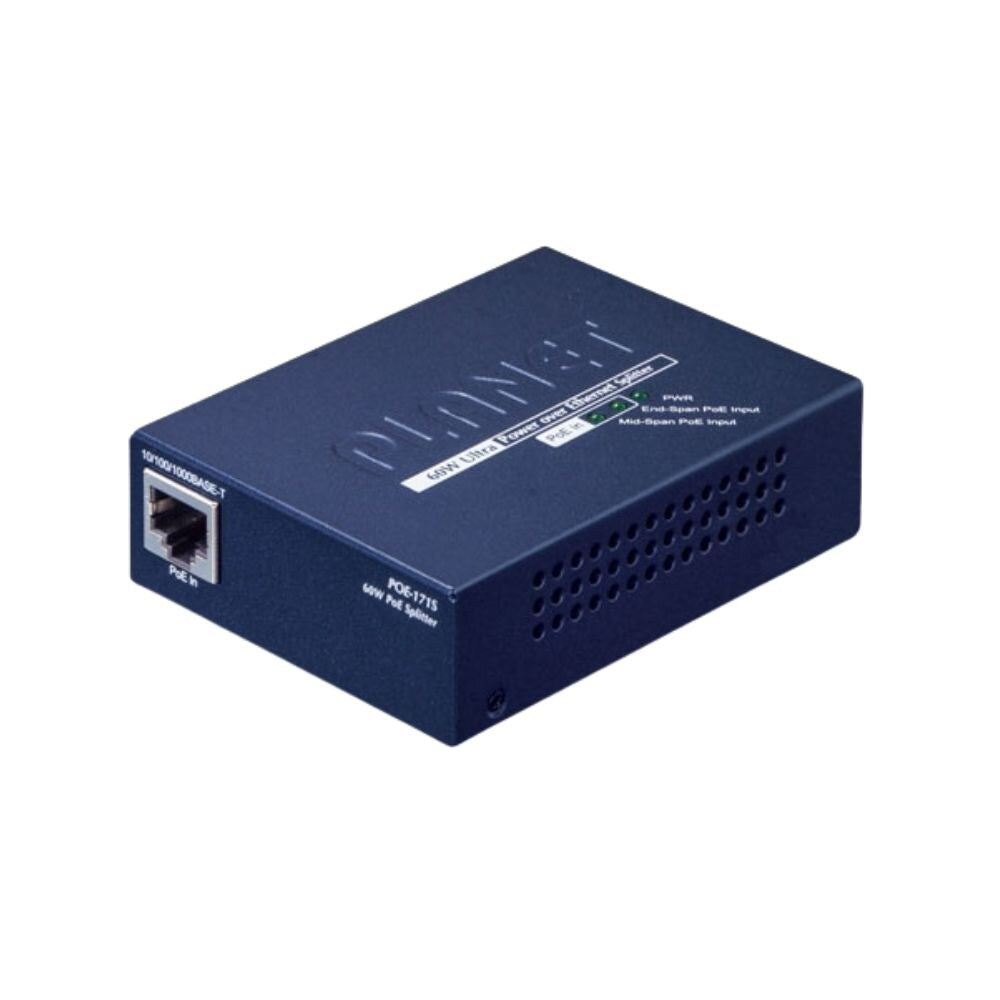

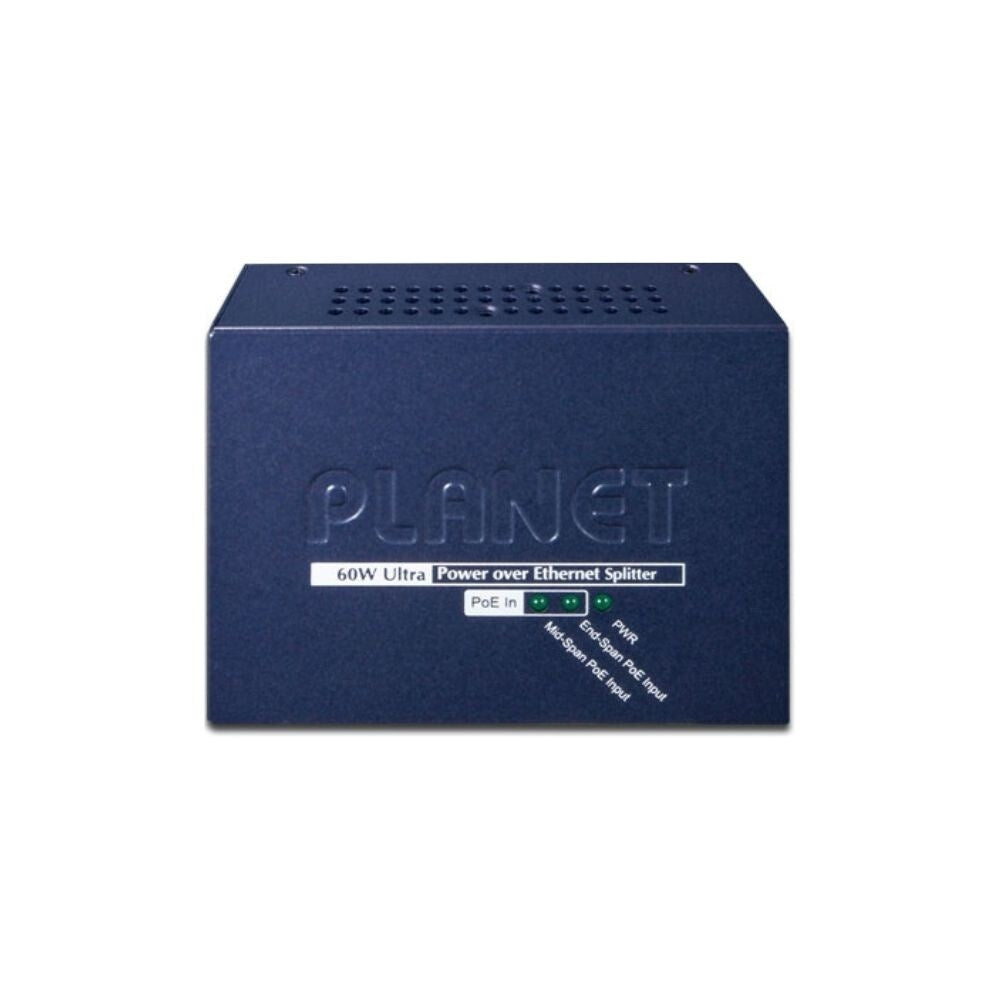

Planet Technology's POE-171S Gigabit ultra Power over Ethernet splitter delivers the Ethernet digital data with DC 56V power over the twisted pair cables as an IEEE 802.3at/af Gigabit high Power over Ethernet splitter. It separates the digital data and the power into three optional outputs of 12V, 19V or24V DC and distance up to 100m.
This single port ultra PoE splitter frees the device deployment from restrictions due to power outlet locations, which eliminates the costs for additional AC wiring and reduces the installation time.

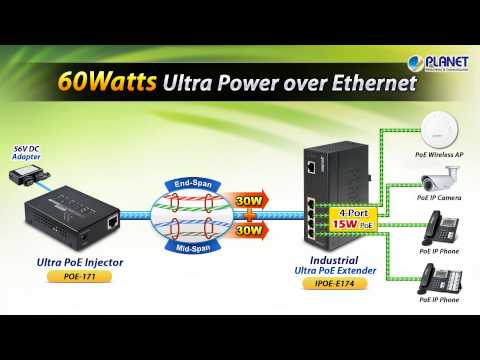

The POE-171S solution uses cabling standard as IEEE 802.3at/af PoE. Instead of delivering power over 2 pair twisted UTP, end span (Pin 1,2,3 and 6) or Mid-span (Pin 4,5,7 and 8), it provides the capability to source up to 50W of power by using all the four pairs of standard CAT5e or CAT6 Ethernet cabling. In the new 4 pair system, two PSE controllers will be used to power both the data pairs and the spare pairs.
In the IEEE 802.3at Gigabit high power over Ethernet devices installed, the system administrator only has to connect one single RJ45 Ethernet cable to carry both power and data from an IEEE 802.3at/af PoE injector to POE-171S and then the POE-171S splits data and DC power to any of IP networking devices.
The user can also have the benefits of cost saving, easy networking planning and higher reliability.
Upon the completion of the installation of IEEE 802.3at compliant devices, the POE-171S can make the connection while migrating or splitting the power and the Ethernet digital packets, such as PTZ, Pan, Tilt and Zoom, network cameras, PTZ Speed Dome, colour touch screen Voice over IP (VoIP) telephones, multii channel wireless LAN access points and other Network devices that need 50W high power to work normally.
Features:
Interface
Power over Ethernet
Hardware
Standard Compliance
Specifications:

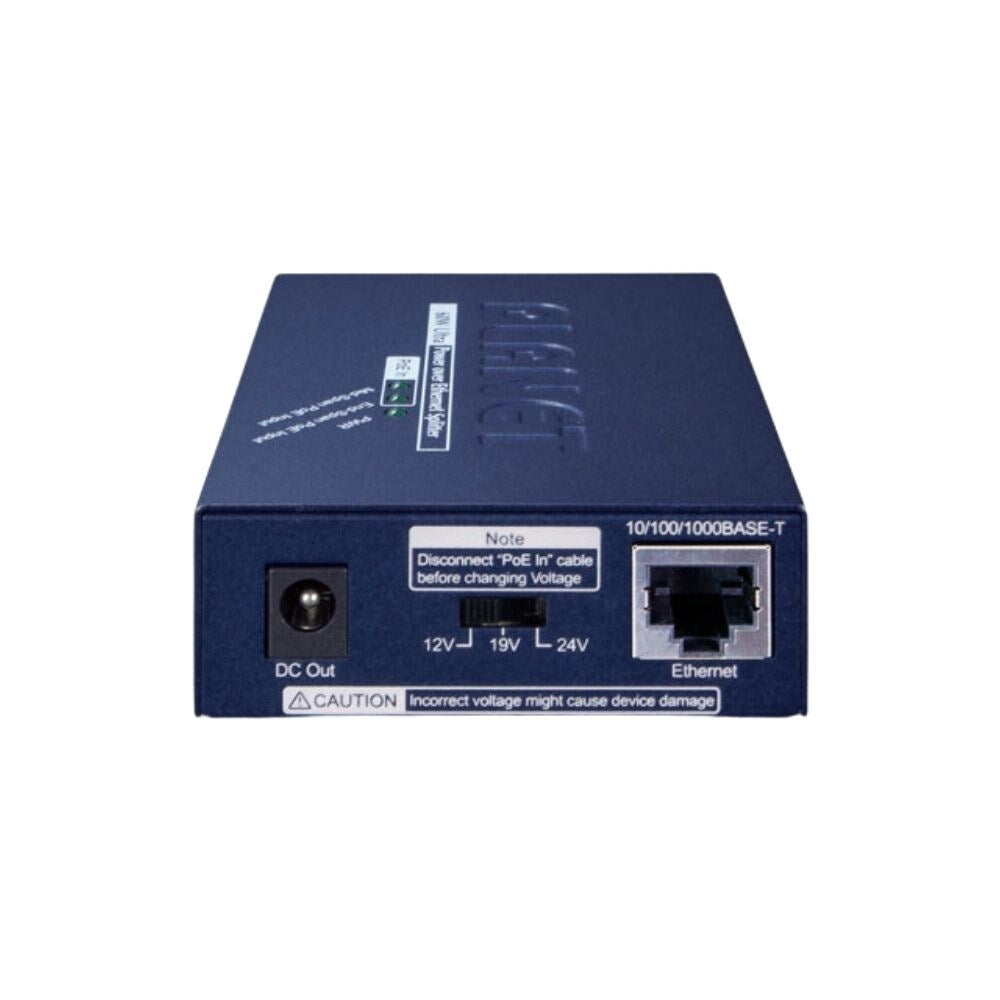

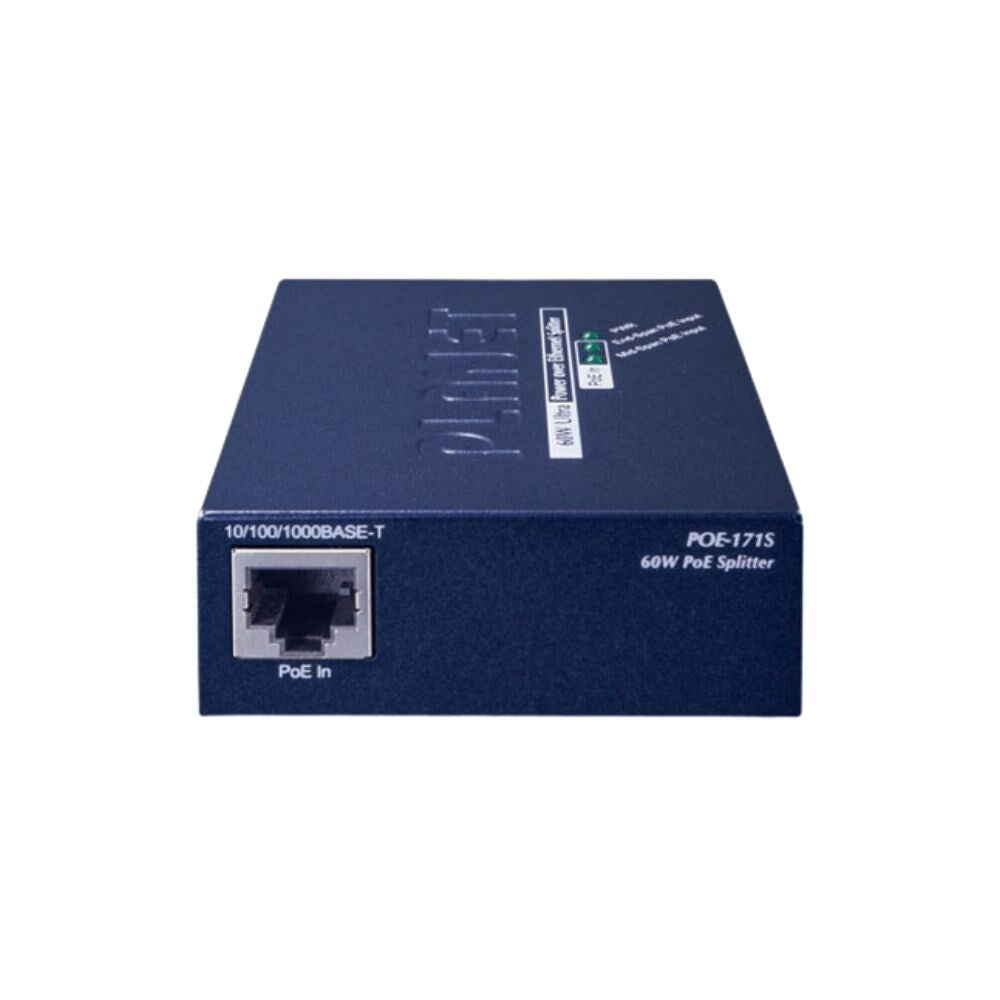

| Interface | Input: Port 1 x RJ-45 STP PoE data plus power in Output: Port 1 x RJ-45 STP data out DC Socket: DC out DIP switch 12V DC, 19V DC or 24V DC output voltage |
| Data Rate | 10/100/1000Mbps |
| Power | Requirement: 52 to 56V DC Consumption: 50W maximum Output: DC 12V, 19V or 24V by DIP switch control |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus |
| Operating Temperature | 0°C / 32°F to 50°C / 122°F |
| DC Plug Connectors Dimension | 2 external female plug cables: Diameter: 5.5/2.5mm to 5.5/2.5mm 5.5/2.5mm to 5.5/2.1mm |
| Dimensions | Height: 26mm / 1.02" Width: 95mm / 3.74" Depth: 70 mm / 2.76" |
| Weight | 300g / 0.66lb |
Download User Guides:
Data Sheet
Users Manual
