Description
Description:

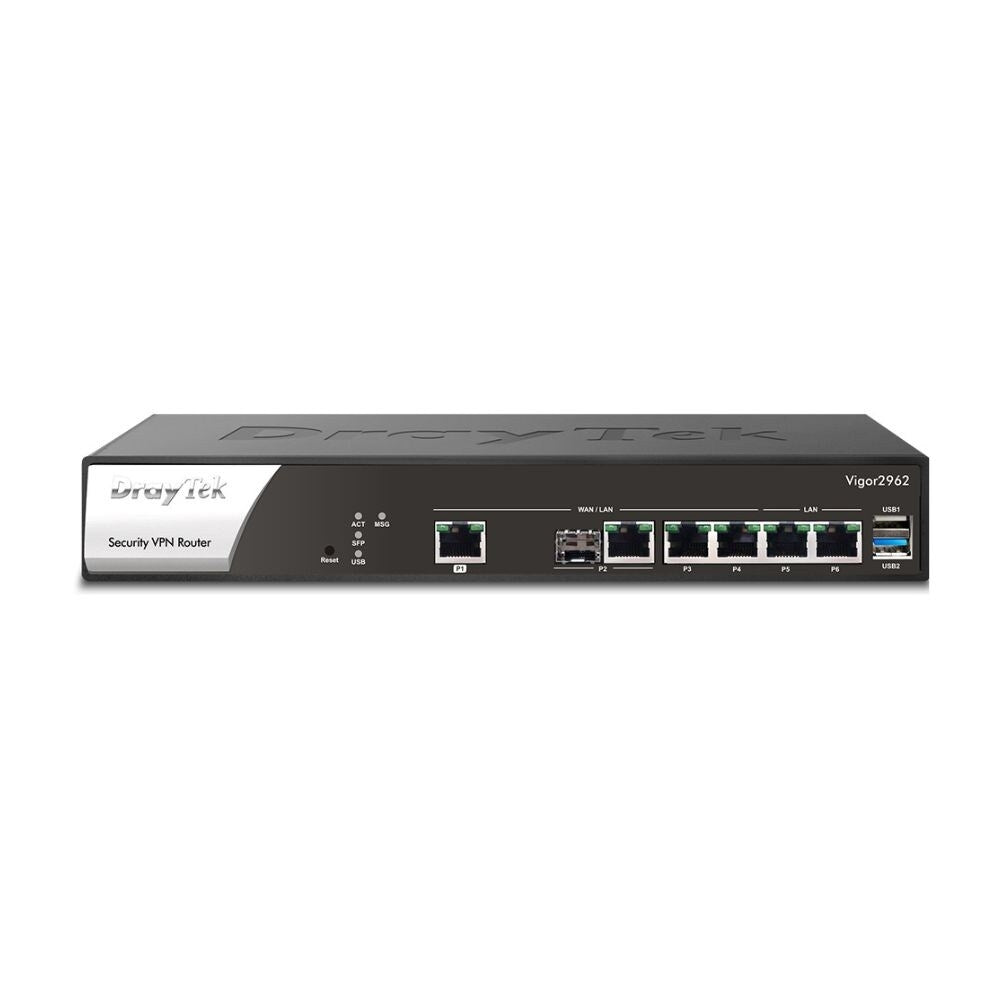

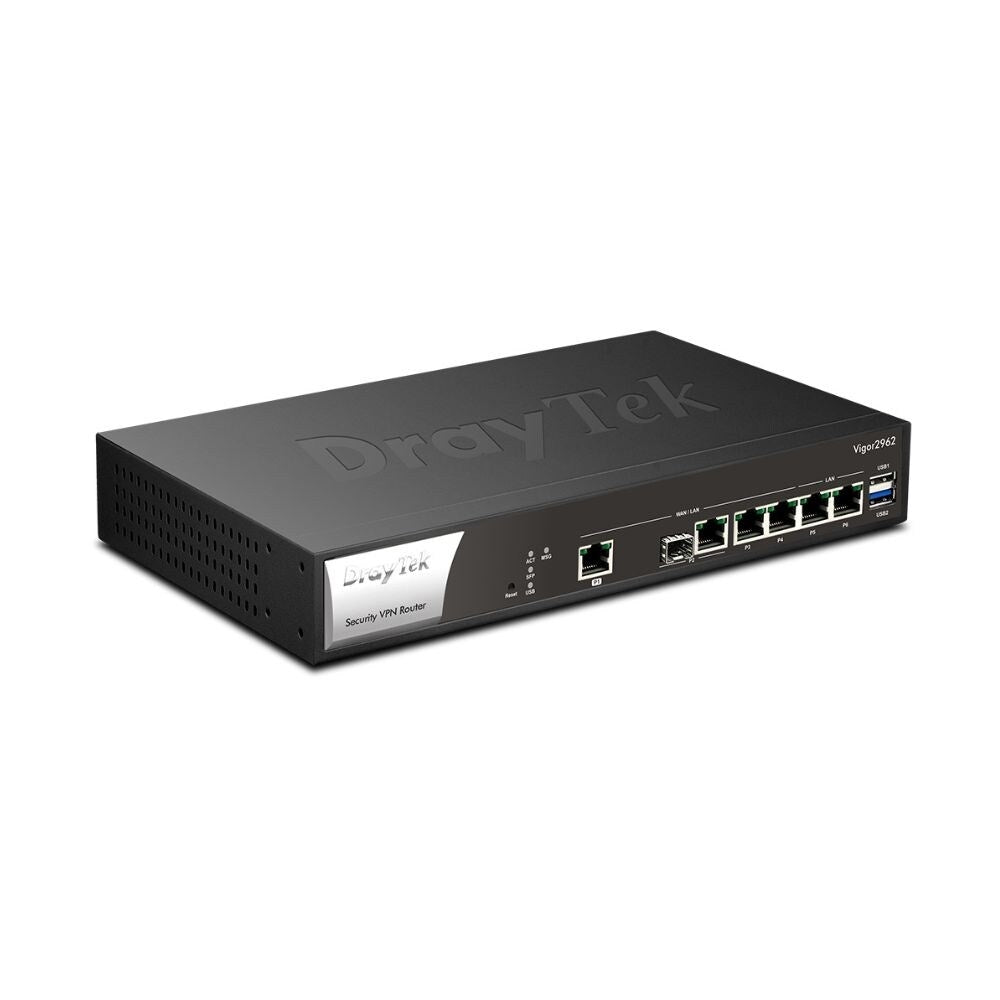

The DrayTek Vigor 2962 Dual WAN Load Balancing Firewall VPN router surpasses Gigabit speeds, to get the best performance out of FTTP Fibre Broadband. Offering up to 2.2Gbps single or dual WAN of throughput, all with Content Filtering, quality of service and Bandwidth Management features enabled.
It connects to 2.5Gb Ethernet and SFP Fibre for LAN or WAN use.
The Vigor 2962 provides a reliable, flexible and secure network solution with extensive Firewall, Content Filtering, VPN client or server and Quality of Service controls. An ideal VPN concentrator with 650Mbps SSL VPN performance. Connects up to 50 SSL VPN and OpenVPN users, or 200 IPsec tunnels, simultaneously.
The Vigor 2962 is a dual Ethernet WAN router featuring VPN, advanced routing, firewall, content filtering, bandwidth management and more. It offers high throughput with load balancing and failover connectivity, suitable for handling Fibre to the Premises (FTTP), Gigabit and the above Internet connections.
Features:
- Dual WAN, 2.5 gigabit, Ethernet and SFP WAN router
- Load balancing and failover with route policy for advanced routing management
- Up to 2.2Gbps total throughput for single or multi WAN configurations
- Manage larger networks with 300k sessions, BGP and OSPF
- Up to 900Mbps IPsec VPN throughput
- 200 LAN to LAN & Remote Teleworker VPN Tunnels
- 50 DrayTek SSL VPN or openVPN Tunnels
- Flexible port configuration, up to 5 LAN ports with 2.5GbE, SFP and RJ 45 Gigabit Ports
- 20 LAN subnets with VLANs (Port-based / 802.1q)
- SPI firewall and content filtering
- Optional VigorCare available
- Can be centrally managed by VigorACS
Specifications:
| Physical Interfaces | WAN/LAN switchable ports - 1 x 2.5Gb Ethernet (2.5G/1G/100M/10M), RJ 45 1x SFP (1G/100M) module slot or gigabit Ethernet (1G/100M/10M), RJ 45 2 x Gigabit Ethernet (1G/100M/10M), RJ-45 |
| USB Ports | 1 x USB 2.0 and 1 x USB 3.0 |
| NAT Performance | 2.2Gb/s total NAT throughput for single or dual WAN |
| NAT Sessions | 300,000 |
| IP Sec (AES256) Performance | 900Mb/s |
| SSL VPN Performance | 650Mb/s |
| Max Concurrent VPN Tunnels | 200 |
| Max Concurrent SSL VPN Tunnels | 50 |
| Load Balancing | IP based, session based |
| Dynamic DNS | Supported |
| DoS Attack Defence | Supported |
| Spoofing Defence | Supported |
| Filtering | Application content filter URL content filter DNS keyword filter |
| VLAN's | Maximum 20 |
| Local DNS Server | Supported |
| Routing Features | Inter VLAN Routing RIP v1/v2/ng BGP OSPF |
| Quality of Service (QoS) | 4 priority queues App QoS VoIP prioritisation |
| High Availability | Active Standby, Hot Standby |
| Power Consumption | 15 Watts Max |
| Operating Temperature | 0°C / 32°F to 45°C / 113°F |
| Dimensions | Height: 45mm / 1.77" Width: 273mm / 10.75" Depth: 170mm / 6.69" |
| Weight | 1.7kg / 3.75" |
User guides
Download User Guides:
Data Sheet
DrayTek Data Book
Quick Start Guide
Users Guide
Security Best Practice White Paper
