Description
Description:
This SmartZone controller is ideal for any mid sized companies who support hyper distributed networks connecting multiple campuses and networks of remote home offices. Using its native hybrid (centralised and distributed) network architecture, a single SZ144 placed within a centralised computer centre can manage up to 6,000 remote sites. And unlike conventional wired and wireless systems that are complex and cumbersome to learn, manage and deploy, the SZ144 is designed to reduce an administrator's workload by streamlining repetitive IT tasks with visual client troubleshooting tools and zero touch discovery, provisioning and policy configuration of new APs and switches.
The SZ144 supports an always on network with intra cluster, inter cluster failover aiding disaster recovery best practices. Featuring multi standards API support, OpenRoaming and network health metrics keep the network flexible.
Features:
- A single management user interface for deploying, monitoring and troubleshooting access points and switches
- Visual connection diagnostics speeds up and simplifies troubleshooting and problem resolution
- Unique "super KPIs" enable IT to quickly detect and react to potential user experience degradation
- Web based configuration wizards configure an entire WLAN/LAN in minutes
- SmartZone protects from catastrophic failures with intra cluster and inter cluster failover
- SZ144 controller manages up to 2K APs, 400 switches and 40K clients
- With 3+1 clustering, it scales up to 6K APs, 1200 switches and 120K clients
- With LAG, aggregate throughput can reach 40Gbps
- Easily create and enforce content policies
- Protects wireless users from accessing inappropriate websites using optionally licensed URL filtering
- SmartZone supports rogue AP detection and mitigation, adaptive band balancing, load balancing, airtime fairness, hotspot and guest services, in addition to capacity based admission control
- 1RU rack mountable chassis footprint

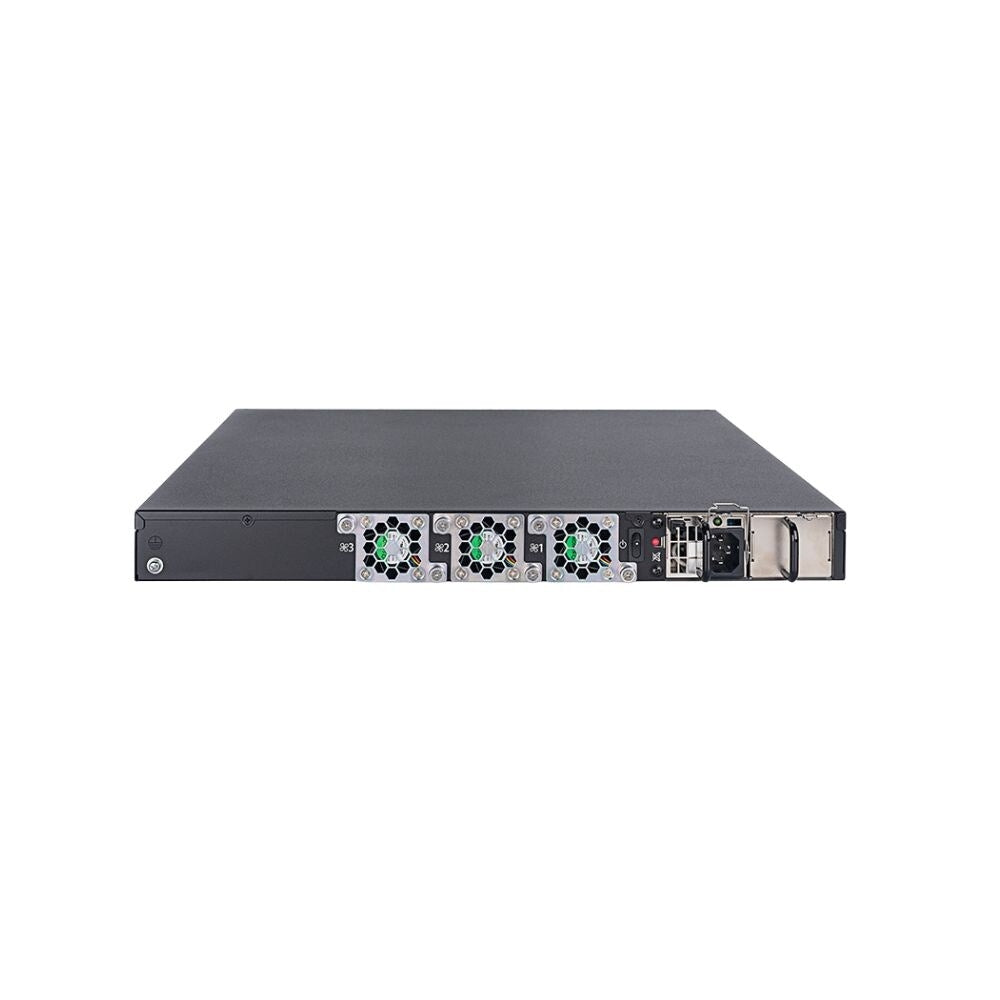

- Redundant removable fans
- Easy discovery from PC using UPnP
Specifications:
| Managed APs | Up to 2,000 per controller Up to 6,000 per cluster |
| Managed Switches | Up to 400 per controller Up to 1200 per cluster |
| WLANs (BSSIDs) | Up to 2,048 |
| VLANS | Up to 4,096 |
| Concurrent Devices | Up to 40,000 per controller Up to 120,000 per cluster |
| Ruckus Wi Fi APs Supported | R850, R750, R730, R720, R710, R650, R610, R550, R510, R320, R310, M510, H510, C110, H320, E510, T811CM, T750, T750SE, T710, T710S, T610, T610S, T504, T310, T301, FZM300 and FZP300 RUCKUS ICX 700 series switches running FastIron 8.0.80 and above supported; FastIron 80.0.90a required for Zero Touch Provisioning |
| Dimensions | Height: 44mm / 1.73" Width: 435mm / 17.13" Depth: 522mm / 20.55" 1RU rack mountable |
| Weight | 6.97kg / 15.37lb |
User guides
Download User Guides:
Data Sheet SmartZone 144
Ruckus Product Guide Brochure
Ruckus Accessory Guide
SmartZone Family Guide
SmartZone Configuration Guide
